Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Height250mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Depth140mm
Width266mm
Number of poles3
Rated permanent current Iu600A
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of switches1
Motor drive integratedNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V450kW
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated short-time withstand current lcw20kA
Suitable for distribution board installationYes
Device constructionComplete device in housing
Voltage release optionalNo
Rated permanent current at AC-23, 400 V800A
Version as reversing switchNo
Switching power at 400 V450kW
Motor drive optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V-A
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

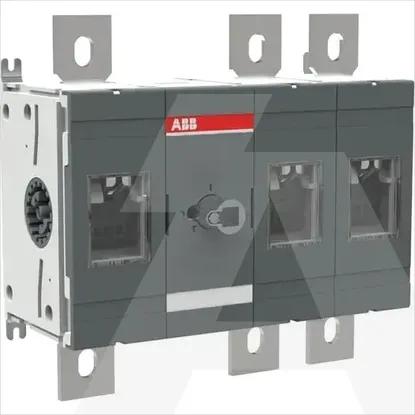

1SCA022800R1830 | OT600U12
