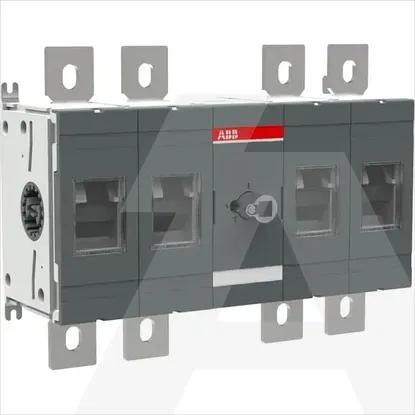

1SCA022800R2130 | OT600U22
Code: 1981810
ManufacturerABB
Catalog number1SCA022800R2130
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019265148
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height250mm
Width331mm
Rated operation power at AC-3, 400 V-kW
Depth140mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of switches1
Version as safety switchNo
InterlockableNo
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw20kA
Rated operation power at AC-23, 400 V450kW
Version as maintenance-/service switchYes
Type of control elementOther
Version as emergency stop installationNo
Version as main switchYes
Suitable for front mounting 4-holeNo
Degree of protection (IP), front sideIP00
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V800A
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Version as reversing switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Switching power at 400 V450kW
Rated permanent current Iu600A
Number of poles4
Max. rated operation voltage Ue AC1000V
