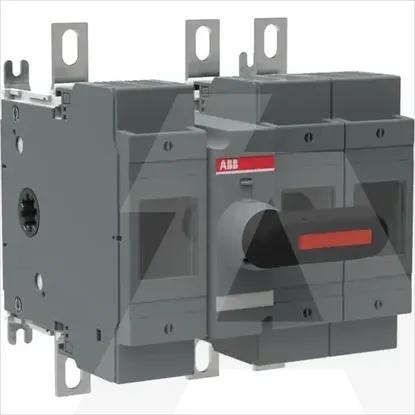

1SCA022800R9140 | OS200D12K
Code: 1981811
ManufacturerABB
Catalog number1SCA022800R9140
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019265742
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Rated short-time withstand current lcw8kA
Suitable for front mountingNo
Version as safety switchYes
Version as main switchYes
Version as emergency stop installationNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V200kW
Motor drive optionalNo
Suitable for busbar mountingYes
Position control elementFront side
With error protectionNo
Equipped with connectorsYes
Rated permanent current Iu200A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
