Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width331mm
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu630A
Type of control elementLong turning handle
Depth140mm
Number of poles4
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Height250mm
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP00
InterlockableNo
Number of switches1
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Version as main switchYes
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V355kW
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Colour control elementBlack
Rated short-time withstand current lcw20kA
Rated operation power at AC-3, 400 V-kW
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
With pre-assembled cablingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V630A
Rated permanent current at AC-23, 400 V630A
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionComplete device in housing
Switching power at 400 V355kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

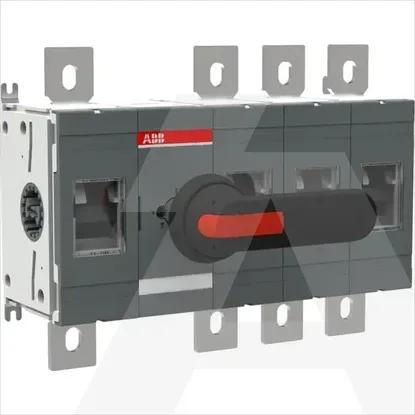

1SCA022823R4420 | OT630E13P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
331mm
Number of auxiliary contacts as normally open contact
0
Rated permanent current Iu
630A
Type of control element
Long turning handle
Depth
140mm
Number of poles
4
Rated operating voltage
1000 .. 1000V
Number of auxiliary contacts as normally closed contact
0
Version as emergency stop installation
Height
250mm
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
Degree of protection (IP), front side
IP00
Interlockable
Number of switches
1
Type of electrical connection of main circuit
Bolt connection
Version as safety switch
Version as main switch
Width in number of modular spacings
-
Conditioned rated short-circuit current Iq
-kA
Rated operation power at AC-23, 400 V
355kW
Suitable for floor mounting
Version as maintenance-/service switch
Colour control element
Black
Rated short-time withstand current lcw
20kA
Rated operation power at AC-3, 400 V
-kW
Suitable for front mounting centre
Suitable for front mounting 4-hole
Suitable for distribution board installation
Degree of protection (NEMA)
Other
Version as reversing switch
Max. rated operation voltage Ue AC
1000V
With pre-assembled cabling
Voltage release optional
Rated permanent current at AC-21, 400 V
630A
Rated permanent current at AC-23, 400 V
630A
Suitable for intermediate mounting
Motor drive optional
Device construction
Complete device in housing
Switching power at 400 V
355kW
