Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Height250mm
Width331mm
Depth140mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu630A
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Type of electrical connection of main circuitBolt connection
Number of poles4
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V355kW
Type of control elementOther
Rated short-time withstand current lcw20kA
Suitable for floor mountingNo
Version as main switchYes
Width in number of modular spacings-
Motor drive integratedNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as safety switchNo
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP00
Device constructionComplete device in housing
Voltage release optionalNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Switching power at 400 V355kW
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V630A
Rated permanent current at AC-23, 400 V630A
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

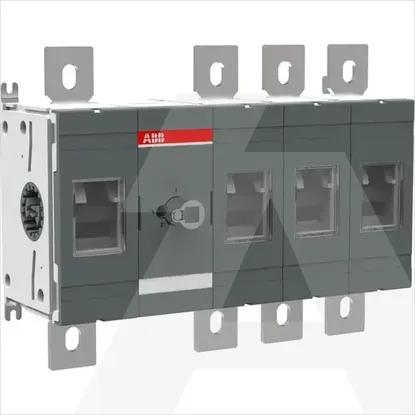

1SCA022823R4510 | OT630E13
