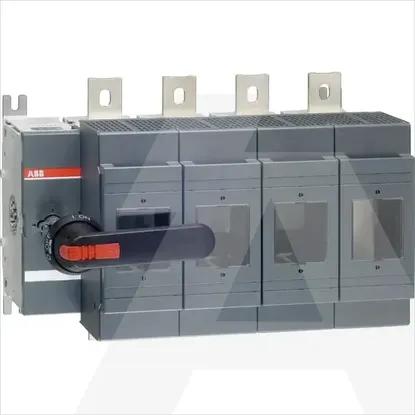

1SCA022825R4290 | OS630D04N2P
Code: 1981823
ManufacturerABB
Catalog number1SCA022825R4290
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019283586
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as emergency stop installationNo
Version as safety switchYes
Suitable for front mountingNo
Rated short-time withstand current lcw18kA
Type of control elementLong turning handle
Suitable for busbar mountingYes
Motor drive optionalNo
Position control elementLeft
With error protectionNo
Equipped with connectorsYes
Rated operation power at AC-23, 400 V630kW
Suitable for floor mountingNo
Version as main switchYes
Rated permanent current Iu570A
Number of poles4
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
