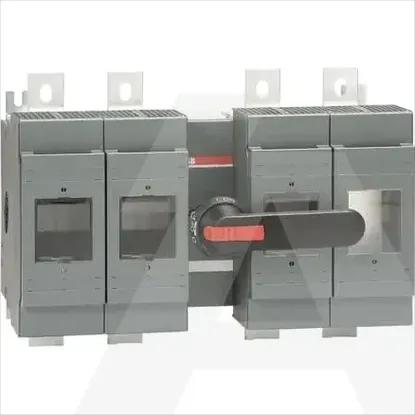

1SCA022825R4450 | OS630D22N2P
Code: 1981824
ManufacturerABB
Catalog number1SCA022825R4450
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019283609
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
With error protectionNo
Suitable for front mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw18kA
Motor drive integratedNo
Type of control elementLong turning handle
Version as main switchYes
Rated operation power at AC-23, 400 V630kW
Suitable for floor mountingNo
Version as emergency stop installationNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Position control elementFront side
Rated permanent current Iu570A
Number of poles4
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
