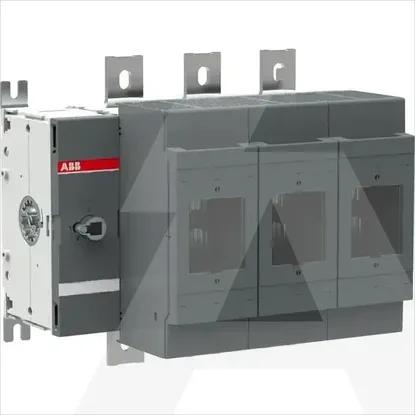

1SCA022825R4700 | OS800D03
Code: 1981826
ManufacturerABB
Catalog number1SCA022825R4700
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019283630
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Suitable for busbar mountingYes
Suitable for floor mountingNo
Version as main switchYes
Suitable for front mountingNo
Rated short-time withstand current lcw18kA
Version as safety switchYes
Rated operation power at AC-23, 400 V710kW
Type of control elementShort thumb-grip
With error protectionNo
Equipped with connectorsYes
Motor drive optionalNo
Position control elementLeft
Rated permanent current Iu720A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
