Details
- •Low-voltage industrial components

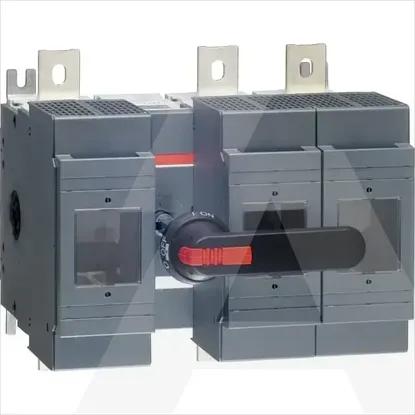

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu720A
Cable entryOther
Number of poles3
Rated operation power at AC-23, 400 V710kW
Suitable for front mountingNo
Version as emergency stop installationNo
Motor drive integratedNo
Version as safety switchYes
Position control elementFront side
Version as main switchYes
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for fusesNH3
Equipped with connectorsYes
Rated short-time withstand current lcw18kA
Suitable for busbar mountingYes
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Suitable for floor mountingNo
With error protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022825R5340 | OS800D12P
