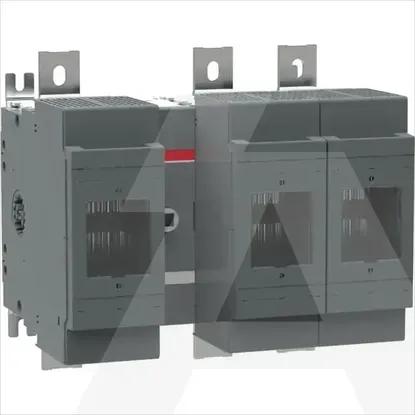

1SCA022826R0000 | OS800L12
Code: 1981832
ManufacturerABB
Catalog number1SCA022826R0000
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019284163
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Rated short-time withstand current lcw18kA
Version as main switchYes
Position control elementFront side
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Suitable for front mountingNo
Equipped with connectorsYes
Rated operation power at AC-23, 400 V710kW
Motor drive optionalNo
With error protectionNo
Rated permanent current Iu720A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
