1SCA022834R0450 | OT800KFCC3BA
Code: 1981837
ManufacturerABB
Catalog number1SCA022834R0450
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019289410
Details

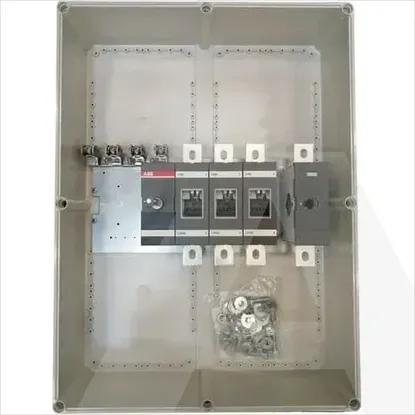

- •OT800KFCC3BA ENCL. SWITCH DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Number of switches1
Motor drive integratedNo
Version as maintenance-/service switchNo
Suitable for distribution board installationNo
Version as safety switchNo
Rated short-time withstand current lcw20kA
Voltage release optionalNo
Version as emergency stop installationNo
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Colour control elementRed
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V400kW
Suitable for front mounting centreNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V720A
Version as reversing switchNo
Degree of protection (NEMA)Other
Switching power at 400 V400kW
Rated permanent current at AC-21, 400 V720A
Version as main switchYes
Rated permanent current Iu720A
Number of poles3
Max. rated operation voltage Ue AC1000V
