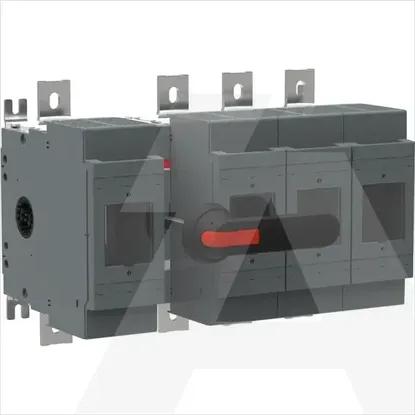

1SCA022835R7420 | OS630D13FP
Code: 1981847
ManufacturerABB
Catalog number1SCA022835R7420
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019290843
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Suitable for busbar mountingYes
Suitable for front mountingNo
With error protectionNo
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingNo
Position control elementFront side
Type of electrical connection of main circuitBolt connection
Equipped with connectorsYes
Rated short-time withstand current lcw18kA
Type of control elementLong turning handle
Motor drive optionalNo
Version as safety switchYes
Rated operation power at AC-23, 400 V630kW
Motor drive integratedNo
Rated permanent current Iu570A
Number of poles4
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
