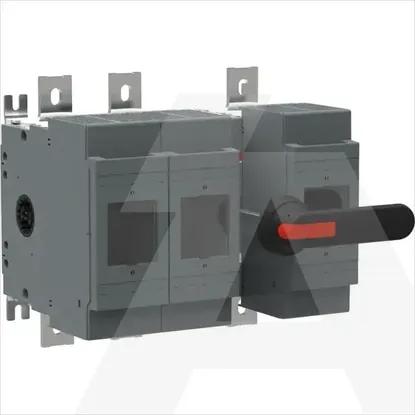

1SCA022835R7930 | OS630D21P
Code: 1981849
ManufacturerABB
Catalog number1SCA022835R7930
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019290898
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of control elementLong turning handle
Version as main switchYes
Rated short-time withstand current lcw18kA
Rated operation power at AC-23, 400 V630kW
Version as safety switchYes
Motor drive optionalNo
With error protectionNo
Position control elementFront side
Suitable for floor mountingNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Suitable for front mountingNo
Rated permanent current Iu570A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022835R7930 | OS630D21P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
Conditioned rated short-circuit current Iq
80kA
Motor drive integrated
Type of control element
Long turning handle
Version as main switch
Rated short-time withstand current lcw
18kA
Rated operation power at AC-23, 400 V
630kW
Version as safety switch
Motor drive optional
With error protection
Position control element
Front side
Suitable for floor mounting
Suitable for busbar mounting
Equipped with connectors
Suitable for front mounting
Rated permanent current Iu
570A
Number of poles
3
Suitable for fuses
NH3
Max. rated operation voltage Ue AC
1000V
