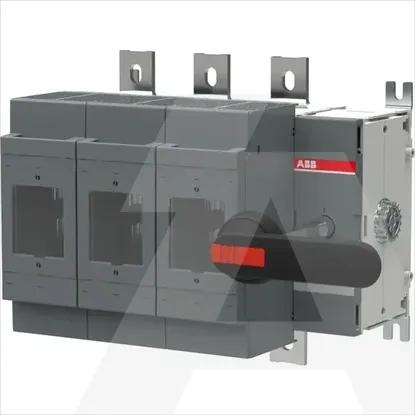

1SCA022835R8310 | OS630D30P
Code: 1981852
ManufacturerABB
Catalog number1SCA022835R8310
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019290935
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Motor drive integratedNo
Rated operation power at AC-23, 400 V630kW
Version as safety switchYes
Version as main switchYes
Type of control elementLong turning handle
Suitable for floor mountingNo
Rated short-time withstand current lcw18kA
Version as emergency stop installationNo
Suitable for front mountingNo
Position control elementRight
Motor drive optionalNo
Equipped with connectorsYes
With error protectionNo
Suitable for busbar mountingYes
Rated permanent current Iu570A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
