Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height185mm
Conditioned rated short-circuit current Iq-kA
Number of poles4
Number of auxiliary contacts as normally open contact0
Depth107mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu500A
Rated operating voltage1000 - 1000V
Width235mm
Type of electrical connection of main circuitBolt connection
Number of switches1
Type of control elementLong turning handle
InterlockableNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated short-time withstand current lcw15kA
Version as main switchYes
Version as maintenance-/service switchYes
Rated permanent current at AC-21, 400 V500A
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Colour control elementBlack
Version as safety switchNo
Voltage release optionalNo
Version as emergency stop installationNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V132kW
Motor drive integratedNo
Degree of protection (IP), front sideIP00
Suitable for front mounting centreNo
Width in number of modular spacings-
Rated permanent current at AC-23, 400 V400A
Degree of protection (NEMA)Other
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V132kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

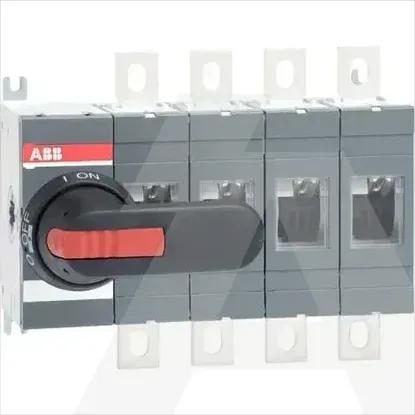

1SCA022836R3660 | OT500E04P
