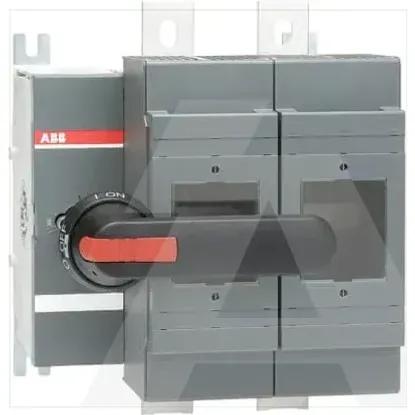

1SCA022837R2650 | OS800D02P
Code: 1981858
ManufacturerABB
Catalog number1SCA022837R2650
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019291659
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of control elementLong turning handle
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Version as safety switchYes
Version as emergency stop installationNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V710kW
Suitable for floor mountingNo
Suitable for front mountingNo
Position control elementLeft
Rated short-time withstand current lcw18kA
Motor drive optionalNo
With error protectionNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Rated permanent current Iu720A
Number of poles2
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
