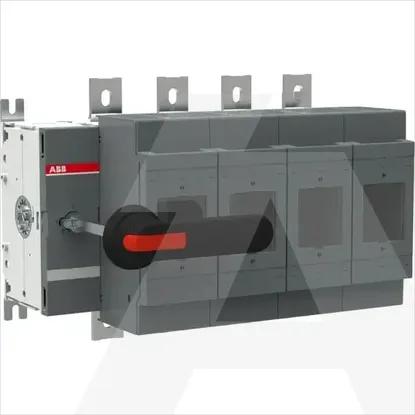

1SCA022839R5430 | OS800L04FP
Code: 1981861
ManufacturerABB
Catalog number1SCA022839R5430
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019293370
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive integratedNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as safety switchYes
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Rated short-time withstand current lcw18kA
Suitable for busbar mountingYes
Rated operation power at AC-23, 400 V710kW
With error protectionNo
Motor drive optionalNo
Suitable for front mountingNo
Position control elementLeft
Equipped with connectorsYes
Rated permanent current Iu720A
Number of poles4
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
