Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as safety switchNo
Max. rated operation voltage Ue AC1000V
Version as main switchYes
Rated permanent current Iu600A
Number of switches1
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Rated operating voltage1000 - 1000V
Rated permanent current at AC-23, 400 V800A
Rated operation power at AC-3, 400 V-kW
Rated operation power at AC-23, 400 V450kW
Rated short-time withstand current lcw20kA
Switching power at 400 V450kW
Conditioned rated short-circuit current Iq-kA
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Suitable for floor mountingNo
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Type of control elementOther
InterlockableNo
Type of electrical connection of main circuitBolt connection
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP00
Width331mm
Suitable for distribution board installationYes
With pre-assembled cablingNo
Width in number of modular spacings-
Height250mm
Depth140mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

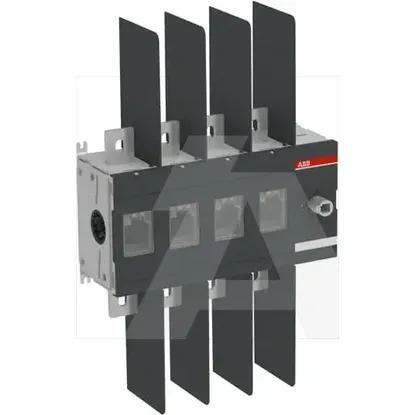

1SCA022840R9410 | OT600U40
