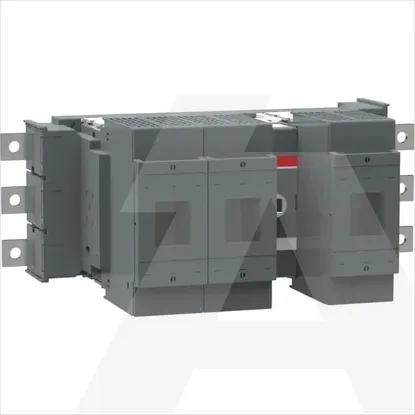

1SCA022853R2100 | OS400D21LR
Code: 1981877
ManufacturerABB
Catalog number1SCA022853R2100
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019302553
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as safety switchYes
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw14kA
Suitable for front mountingNo
Equipped with connectorsYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V400kW
Suitable for busbar mountingYes
Motor drive optionalNo
Position control elementFront side
With error protectionNo
Rated permanent current Iu630A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
