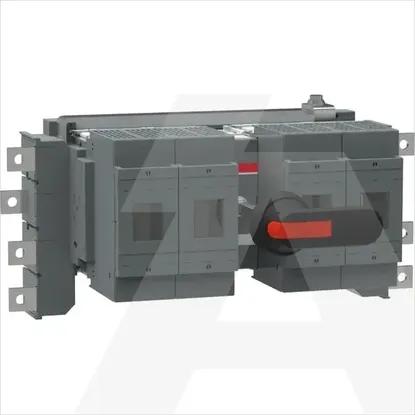

1SCA022853R4140 | OS400D22LRP
Code: 1981881
ManufacturerABB
Catalog number1SCA022853R4140
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019302751
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V400kW
Version as safety switchYes
Version as emergency stop installationNo
Motor drive optionalNo
Position control elementFront side
Rated short-time withstand current lcw14kA
Type of control elementLong turning handle
Suitable for front mountingNo
With error protectionNo
Version as main switchYes
Suitable for busbar mountingYes
Equipped with connectorsYes
Rated permanent current Iu400A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
