Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width334.5mm
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of switches1
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Height306mm
Degree of protection (IP), front sideIP00
Depth167mm
Version as emergency stop installationNo
Rated permanent current Iu1000A
Number of poles3
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Type of control elementLong turning handle
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
InterlockableNo
Rated operating voltage1000 - 1000V
Version as main switchYes
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V1000A
Switching power at 400 V560kW
Version as reversing switchNo
Rated short-time withstand current lcw50kA
With pre-assembled cablingNo
Suitable for front mounting 4-holeNo
Version as safety switchNo
Rated permanent current at AC-23, 400 V1000A
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V560kW
Colour control elementBlack
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

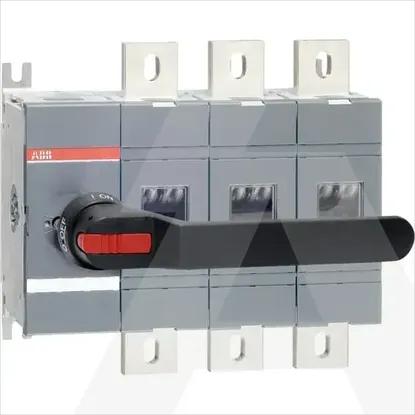

1SCA022860R5930 | OT1000E03P
