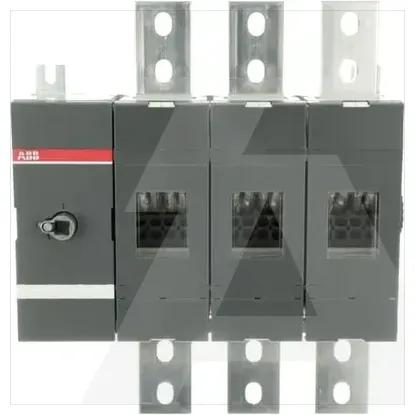

1SCA022860R6820 | OT1200U03
Code: 1981889
ManufacturerABB
Catalog number1SCA022860R6820
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019309392
Details
- •OT1200U03 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width334.5mm
Height372mm
Depth145.9mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
InterlockableNo
Motor drive integratedNo
Number of switches1
Version as main switchYes
Version as safety switchNo
Rated short-time withstand current lcw50kA
Type of control elementOther
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V710kW
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V-A
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for distribution board installationYes
Voltage release optionalNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V1250A
Degree of protection (NEMA)Other
Version as reversing switchNo
Switching power at 400 V710kW
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
