Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width147mm
Depth107mm
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles2
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu315A
Number of auxiliary contacts as change-over contact0
Height185mm
Rated operating voltage1000 - 1000V
Suitable for distribution board installationYes
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V180kW
Colour control elementBlack
Max. rated operation voltage Ue AC1000V
InterlockableNo
Number of switches1
Rated short-time withstand current lcw15kA
Motor drive integratedNo
Suitable for intermediate mountingNo
Type of control elementLong turning handle
Suitable for front mounting centreNo
Version as main switchYes
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V315A
Rated permanent current at AC-21, 400 V315A
Switching power at 400 V180kW
Device constructionComplete device in housing
Motor drive optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

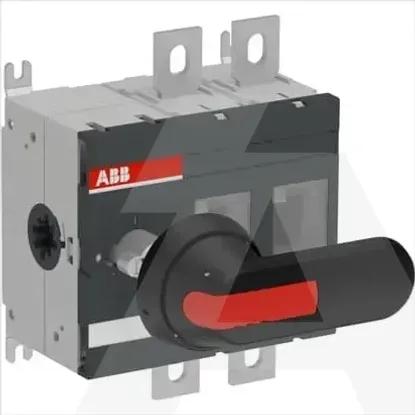

1SCA022866R5590 | OT315E02P
