Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of switches1
Width201mm
Rated permanent current Iu630A
Height250mm
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Number of poles2
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
InterlockableNo
Depth140mm
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as main switchYes
Colour control elementBlack
Suitable for front mounting centreNo
Version as safety switchNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V355kW
Switching power at 400 V355kW
Motor drive optionalNo
Rated permanent current at AC-23, 400 V630A
Suitable for floor mountingNo
Voltage release optionalNo
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V630A
Suitable for intermediate mountingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated short-time withstand current lcw20kA
Device constructionComplete device in housing
Max. rated operation voltage Ue AC1000V
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

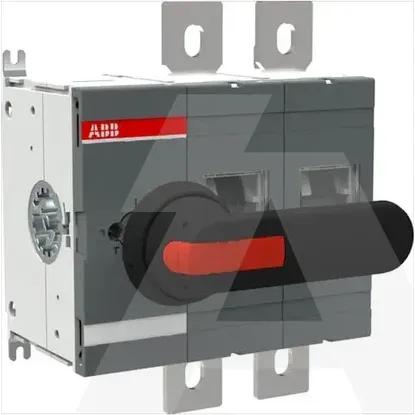

1SCA022866R5670 | OT630E02P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Rated operation power at AC-3, 400 V
-kW
Number of switches
1
Width
201mm
Rated permanent current Iu
630A
Height
250mm
Degree of protection (IP), front side
IP00
Number of auxiliary contacts as change-over contact
0
Rated operating voltage
1000 .. 1000V
Number of poles
2
Width in number of modular spacings
-
Conditioned rated short-circuit current Iq
-kA
Motor drive integrated
Number of auxiliary contacts as normally open contact
0
Interlockable
Depth
140mm
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
Type of control element
Long turning handle
Version as main switch
Colour control element
Black
Suitable for front mounting centre
Version as safety switch
Version as maintenance-/service switch
Suitable for front mounting 4-hole
Rated operation power at AC-23, 400 V
355kW
Switching power at 400 V
355kW
Motor drive optional
Rated permanent current at AC-23, 400 V
630A
Suitable for floor mounting
Voltage release optional
Suitable for distribution board installation
Rated permanent current at AC-21, 400 V
630A
Suitable for intermediate mounting
Version as reversing switch
Degree of protection (NEMA)
Other
Rated short-time withstand current lcw
20kA
Device construction
Complete device in housing
Max. rated operation voltage Ue AC
1000V
With pre-assembled cabling
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
