Details
- •Low-voltage industrial components

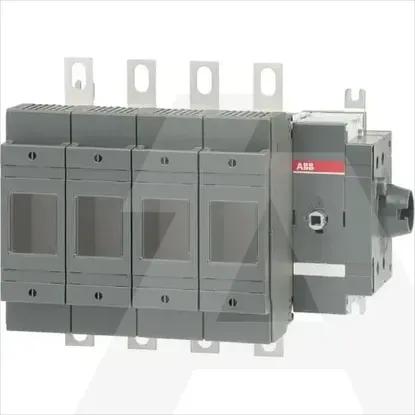

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu200A
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Suitable for fusesNH0
Number of poles4
Type of control elementShort thumb-grip
Suitable for floor mountingNo
Version as emergency stop installationNo
Motor drive integratedNo
Suitable for busbar mountingYes
With error protectionNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V200kW
Max. rated operation voltage Ue AC1000V
Suitable for front mountingNo
Version as safety switchYes
Equipped with connectorsYes
Rated short-time withstand current lcw8kA
Type of electrical connection of main circuitBolt connection
Position control elementRight
Version as main switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022871R1700 | OS200DS40N2
