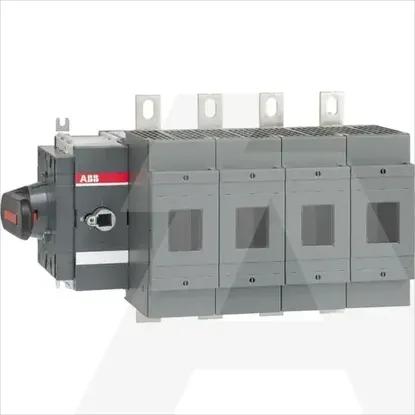

1SCA022871R2770 | OS400DS04N2K
Code: 1981903
ManufacturerABB
Catalog number1SCA022871R2770
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019338132
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Version as emergency stop installationNo
Rated short-time withstand current lcw14kA
Rated operation power at AC-23, 400 V400kW
Suitable for floor mountingNo
Cable entryOther
Motor drive integratedNo
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Version as safety switchYes
With error protectionNo
Suitable for front mountingNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Position control elementLeft
Motor drive optionalNo
Rated permanent current Iu400A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
