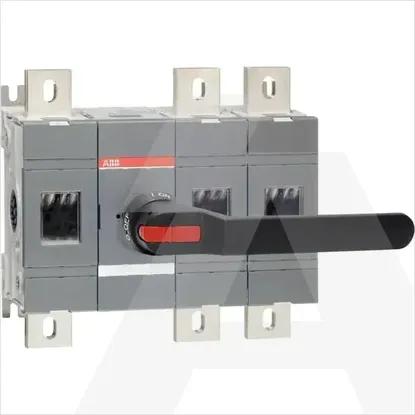

1SCA022871R5520 | OT1000E12P
Code: 1981906
ManufacturerABB
Catalog number1SCA022871R5520
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019338408
Details
- •OT1000E12P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height306mm
Width334.5mm
Depth167mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Type of control elementLong turning handle
Degree of protection (IP), front sideIP00
Version as emergency stop installationNo
Number of switches1
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Suitable for floor mountingNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V560kW
Version as maintenance-/service switchYes
Rated short-time withstand current lcw50kA
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Voltage release optionalNo
Rated permanent current at AC-23, 400 V1000A
Version as reversing switchNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V1000A
Device constructionComplete device in housing
Switching power at 400 V560kW
Rated permanent current Iu1000A
Number of poles3
Max. rated operation voltage Ue AC1000V
