Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width414.5mm
Height306mm
Depth167mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Rated permanent current Iu1000A
Number of poles4
Number of switches1
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Degree of protection (IP), front sideIP00
Version as maintenance-/service switchYes
InterlockableNo
Rated operation power at AC-23, 400 V560kW
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw50kA
Suitable for front mounting centreNo
Suitable for floor mountingNo
Version as safety switchNo
Colour control elementBlack
Version as main switchYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Suitable for distribution board installationYes
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V1000A
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V560kW
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1000A
With pre-assembled cablingNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

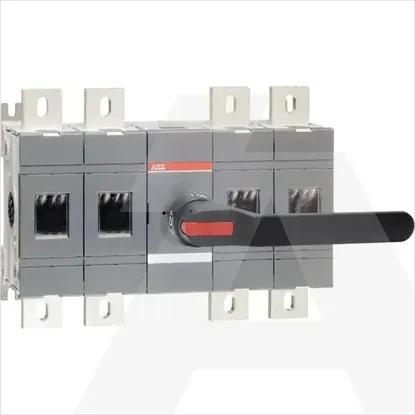

1SCA022871R5610 | OT1000E22P
