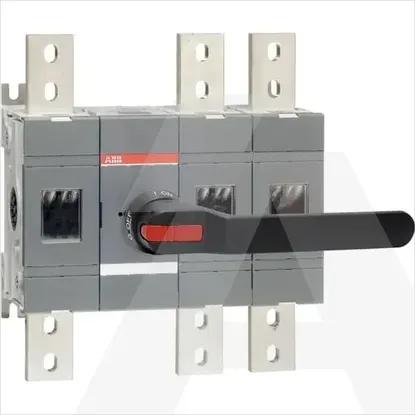

1SCA022871R5950 | OT1600E12P
Code: 1981910
ManufacturerABB
Catalog number1SCA022871R5950
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019338446
Details
- •OT1600E12P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width334.5mm
Number of auxiliary contacts as normally open contact0
Depth167mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Height372mm
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq-kA
Number of switches1
Type of control elementLong turning handle
Version as emergency stop installationNo
Motor drive integratedNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
InterlockableNo
Version as safety switchNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V710kW
Rated short-time withstand current lcw50kA
Version as maintenance-/service switchYes
Voltage release optionalNo
Device constructionComplete device in housing
Colour control elementBlack
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1600A
With pre-assembled cablingNo
Switching power at 400 V710kW
Rated permanent current at AC-23, 400 V1250A
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current Iu1600A
Number of poles3
Max. rated operation voltage Ue AC1000V
