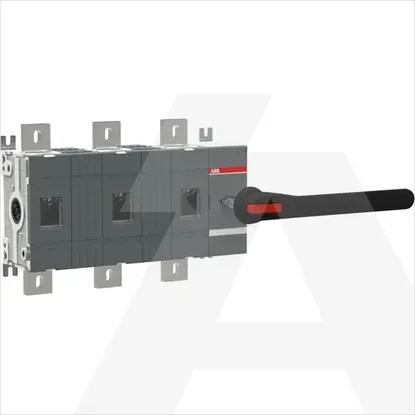

1SCA022871R7730 | OT1250E30W4P
Code: 1981912
ManufacturerABB
Catalog number1SCA022871R7730
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019338613
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width454.5mm
Rated operation power at AC-3, 400 V-kW
Height306mm
Number of auxiliary contacts as normally closed contact0
Depth145.5mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Suitable for front mounting centreNo
Suitable for floor mountingNo
Number of switches1
Type of control elementLong turning handle
Suitable for distribution board installationYes
Rated short-time withstand current lcw50kA
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Colour control elementBlack
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V710kW
Version as safety switchNo
Suitable for front mounting 4-holeNo
InterlockableNo
Motor drive integratedNo
Version as main switchYes
Rated permanent current at AC-21, 400 V1250A
Rated permanent current at AC-23, 400 V1250A
Switching power at 400 V710kW
Device constructionComplete device in housing
Version as reversing switchNo
Type of electrical connection of main circuitBolt connection
Voltage release optionalNo
Motor drive optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current Iu1250A
Number of poles3
Max. rated operation voltage Ue AC1000V
