Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height150mm
Width194mm
Motor drive integratedNo
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Number of poles3
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP20
InterlockableYes
Number of switches1
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Depth160mm
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu-A
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Colour control elementBlack
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V-kW
Degree of protection (NEMA)1
Version as reversing switchNo
Voltage release optionalNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeYes
Version as safety switchNo
Switching power at 400 V-kW
Suitable for floor mountingNo
With pre-assembled cablingNo
Rated short-time withstand current lcw8kA
Rated permanent current at AC-23, 400 V200A
Motor drive optionalNo
Device constructionBuilt-in device plug-in technique
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V200A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

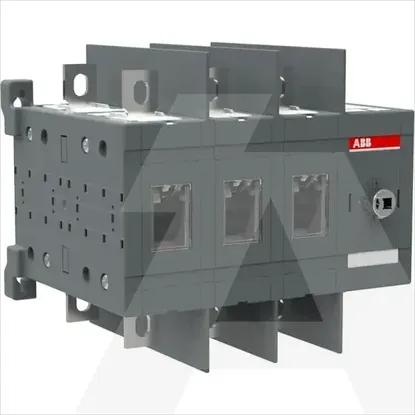

1SCA022874R2840 | OT200U30C
