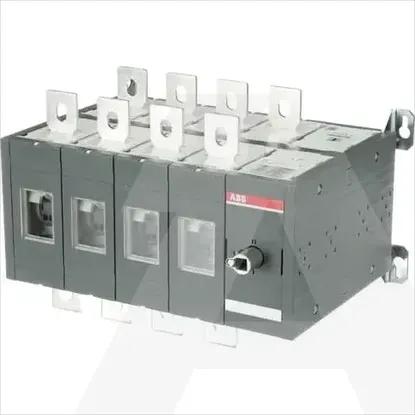

1SCA022874R3810 | OT600U40C
Code: 1981920
ManufacturerABB
Catalog number1SCA022874R3810
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019340272
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Height250mm
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of switches1
Width376mm
Depth280mm
Degree of protection (NEMA)1
Switching power at 400 V-kW
Version as safety switchNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationYes
Voltage release optionalNo
Rated short-time withstand current lcw20kA
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V800A
Version as maintenance-/service switchYes
Device constructionBuilt-in device plug-in technique
Suitable for front mounting centreNo
With pre-assembled cablingNo
Type of control elementOther
Rated operation power at AC-23, 400 V-kW
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-21, 400 V630A
Motor drive optionalNo
Version as reversing switchNo
Colour control elementBlack
Version as main switchYes
Suitable for floor mountingNo
Version as emergency stop installationNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
