Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth107mm
Width196mm
Height185mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Type of control elementLong turning handle
Version as emergency stop installationNo
InterlockableNo
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Number of switches1
Version as safety switchNo
Rated operation power at AC-23, 400 V132kW
Number of poles3
Rated permanent current Iu500A
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Suitable for front mounting centreNo
Rated short-time withstand current lcw15kA
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for floor mountingNo
Switching power at 400 V132kW
Voltage release optionalNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V500A
Rated permanent current at AC-23, 400 V400A
Suitable for intermediate mountingNo
Motor drive optionalNo
Version as reversing switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

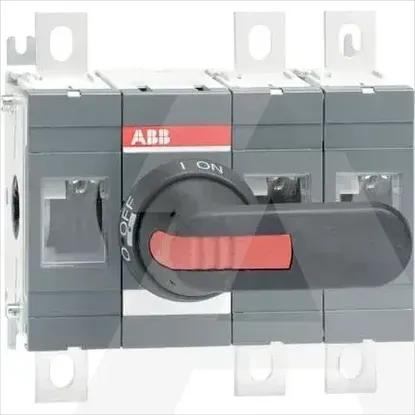

1SCA101320R1001 | OT500E12P
