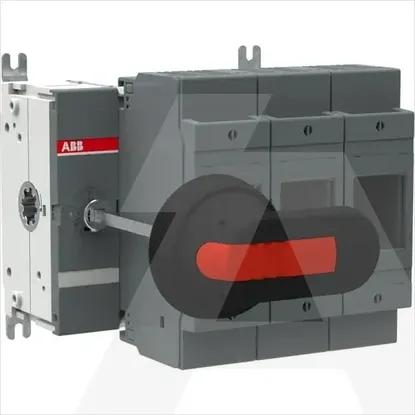

1SCA102150R1001 | OS200D03BBP
Code: 1981950
ManufacturerABB
Catalog number1SCA102150R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019369365
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Suitable for busbar mountingYes
Suitable for front mountingNo
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V200kW
Motor drive integratedNo
Suitable for floor mountingNo
With error protectionNo
Version as emergency stop installationNo
Cable entryOther
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Position control elementLeft
Motor drive optionalNo
Equipped with connectorsYes
Rated permanent current Iu200A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
