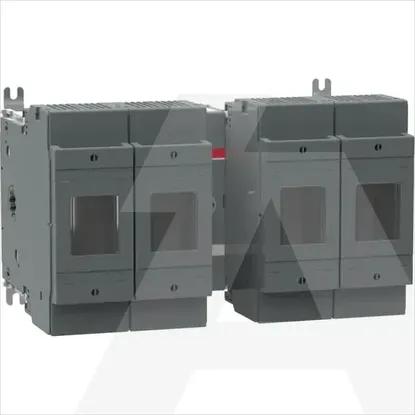

1SCA102204R1001 | OS250D22BBN2
Code: 1981953
ManufacturerABB
Catalog number1SCA102204R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019369846
Details
- •OS250D22BBN2 SPECIAL CONNECTED SWITCH FUSE
- •Low-voltage industrial components
- •Fuse switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Position control elementFront side
Cable entryOther
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Equipped with connectorsYes
With error protectionNo
Suitable for front mountingNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V250kW
Version as main switchYes
Motor drive optionalNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Type of control elementShort thumb-grip
Rated permanent current Iu250A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
