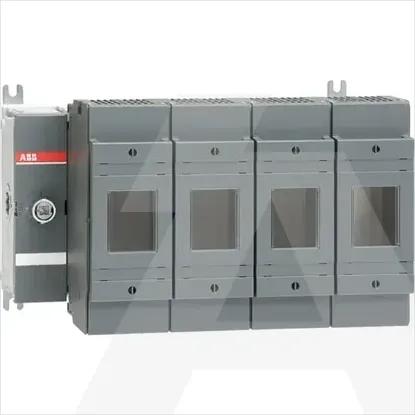

1SCA102205R1001 | OS250D04BBN2P
Code: 1981954
ManufacturerABB
Catalog number1SCA102205R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019369853
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V250kW
Cable entryOther
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Motor drive integratedNo
Type of control elementLong turning handle
Version as safety switchYes
Version as emergency stop installationNo
Suitable for front mountingNo
With error protectionNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsYes
Position control elementLeft
Rated permanent current Iu250A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
