Details
- •Low-voltage industrial components

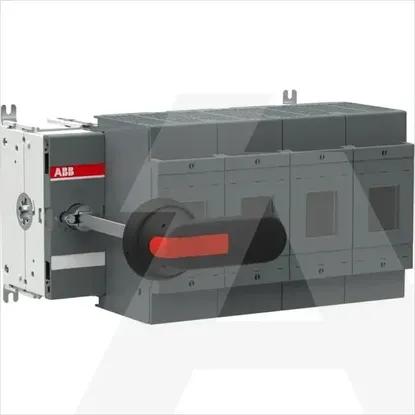

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Rated permanent current Iu400A
Version as main switchYes
Type of control elementLong turning handle
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Cable entryOther
Suitable for fusesNH0
Number of poles4
Rated operation power at AC-23, 400 V400kW
Rated short-time withstand current lcw14kA
Suitable for floor mountingNo
Suitable for busbar mountingYes
Version as safety switchYes
Suitable for front mountingNo
With error protectionNo
Position control elementLeft
Equipped with connectorsYes
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA102289R1001 | OS400D04BBN2P
