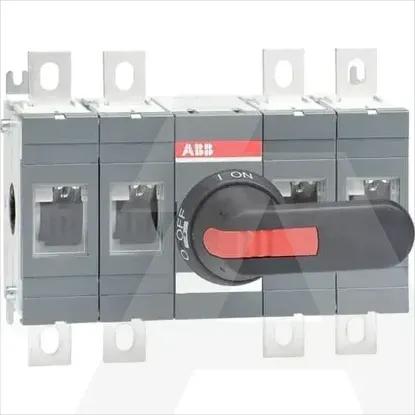

1SCA102496R1001 | OT500E22P
Code: 1981962
ManufacturerABB
Catalog number1SCA102496R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019372532
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Width240mm
Height185mm
Depth107mm
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of switches1
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Colour control elementBlack
Motor drive integratedNo
Version as main switchYes
Rated operation power at AC-23, 400 V132kW
Degree of protection (IP), front sideIP00
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Rated short-time withstand current lcw15kA
InterlockableNo
Version as emergency stop installationNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Type of electrical connection of main circuitBolt connection
Voltage release optionalNo
Rated permanent current at AC-21, 400 V500A
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for distribution board installationYes
Version as reversing switchNo
Switching power at 400 V132kW
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V400A
Rated permanent current Iu500A
Number of poles4
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
