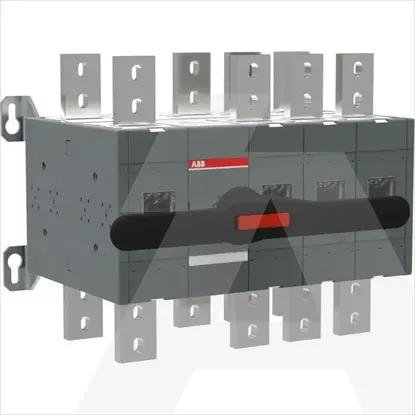

1SCA103306R1001 | OT1600E13CP
Code: 1981970
ManufacturerABB
Catalog number1SCA103306R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019378206
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth309mm
Rated operation power at AC-3, 400 V-kW
Width480mm
Height372mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Width in number of modular spacings-
Motor drive integratedNo
InterlockableYes
Number of switches1
Version as emergency stop installationNo
Version as main switchYes
Suitable for floor mountingNo
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V710kW
Colour control elementBlack
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Version as safety switchNo
Device constructionBuilt-in device plug-in technique
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1600A
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Suitable for distribution board installationYes
Switching power at 400 V710kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1600A
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
