Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP20
Height306mm
Width in number of modular spacings-
Width480mm
Depth309mm
Number of poles4
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Suitable for front mounting centreNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V710kW
Type of control elementLong turning handle
Suitable for distribution board installationYes
Type of electrical connection of main circuitScrew connection
Number of switches1
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Max. rated operation voltage Ue AC1000V
Colour control elementBlack
Rated permanent current at AC-21, 400 V1250A
Version as main switchYes
Version as safety switchNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw50kA
InterlockableYes
Device constructionBuilt-in device plug-in technique
Voltage release optionalNo
Switching power at 400 V710kW
Rated permanent current at AC-23, 400 V1250A
Version as reversing switchNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

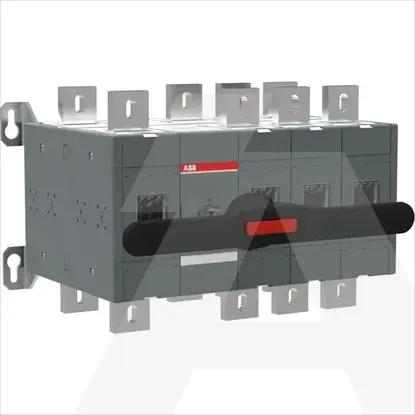

1SCA103313R1001 | OT1250E13CP
