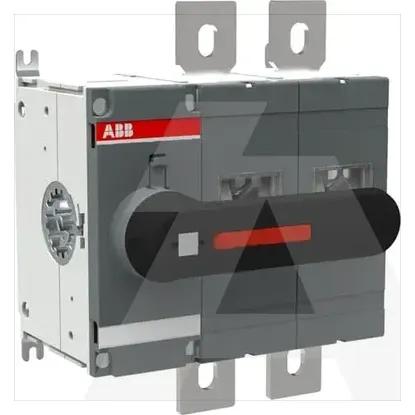

1SCA103321R1001 | OT800E02K
Code: 1981972
ManufacturerABB
Catalog number1SCA103321R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019377360
Details
- •OT800E02K SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Width201mm
Height250mm
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Version as emergency stop installationNo
Motor drive integratedNo
Depth157mm
Version as maintenance-/service switchYes
Rated operating voltage1000 - 1000V
Type of control elementLong turning handle
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of switches1
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V450kW
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated short-time withstand current lcw20kA
Colour control elementBlack
Suitable for front mounting centreNo
Motor drive optionalNo
With pre-assembled cablingNo
Device constructionComplete device in housing
Version as reversing switchNo
Degree of protection (NEMA)Other
Switching power at 400 V450kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V800A
Rated permanent current at AC-21, 400 V800A
Rated permanent current Iu800A
Number of poles2
Max. rated operation voltage Ue AC1000V
