Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height185mm
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Depth107mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Version as maintenance-/service switchYes
Rated short-time withstand current lcw15kA
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of switches1
Version as emergency stop installationNo
Version as main switchYes
Rated permanent current Iu400A
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Number of poles6
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Colour control elementBlack
Width328mm
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V400A
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionComplete device in housing
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

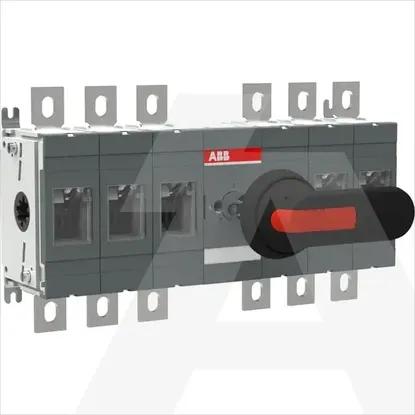

1SCA103355R1001 | OT400E33P
