Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth82.5mm
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Version as maintenance-/service switchYes
Number of poles5
Rated operation power at AC-23, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Height150mm
Rated short-time withstand current lcw8kA
Number of auxiliary contacts as normally open contact0
Version as main switchYes
Number of switches1
Version as emergency stop installationNo
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Width in number of modular spacings-
Rated permanent current Iu200A
Width220.5mm
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitBolt connection
InterlockableNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Device constructionComplete device in housing
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
With pre-assembled cablingNo
Switching power at 400 V-kW
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V200A
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

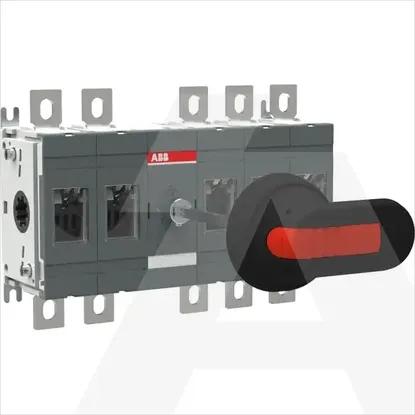

1SCA103713R1001 | OT200E23P
