Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width328mm
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu315A
Height185mm
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Depth107mm
Number of poles6
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP00
InterlockableNo
Number of switches1
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as safety switchNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Version as main switchYes
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V315A
Rated short-time withstand current lcw15kA
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

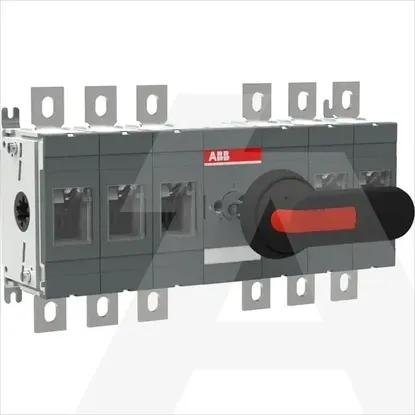

1SCA103723R1001 | OT315E33P
