Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width664mm
Height377mm
Rated operation power at AC-3, 400 V-kW
Depth335mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of poles4
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu-A
Type of control elementLong turning handle
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
InterlockableYes
Motor drive integratedNo
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Width in number of modular spacings-
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Rated short-time withstand current lcw55kA
Colour control elementBlack
Version as emergency stop installationNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Switching power at 400 V-kW
With pre-assembled cablingNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

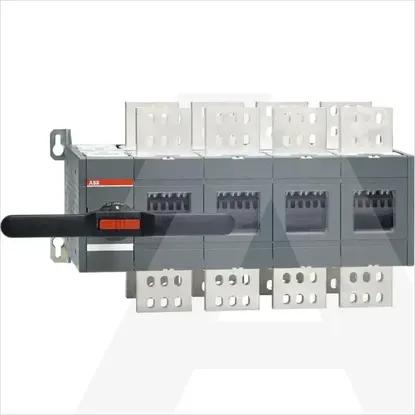

1SCA103912R1001 | OT2000E04CP
