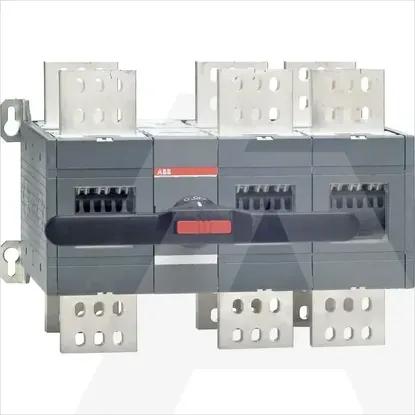

1SCA103915R1001 | OT2000E12CP
Code: 1981989
ManufacturerABB
Catalog number1SCA103915R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019382852
Details
- •OT2000E12CP CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width538mm
Height377mm
Depth335mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Type of control elementLong turning handle
Version as main switchYes
Number of switches1
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Width in number of modular spacings-
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Suitable for front mounting centreNo
Colour control elementBlack
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw55kA
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Degree of protection (NEMA)1
Voltage release optionalNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
