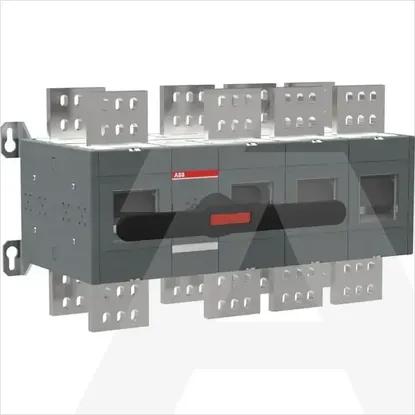

1SCA103918R1001 | OT2000E13CP
Code: 1981990
ManufacturerABB
Catalog number1SCA103918R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019382876
Details
- •OT2000E13CP CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth335mm
Height377mm
Width664mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
Number of switches1
Motor drive integratedNo
Version as main switchYes
Type of control elementLong turning handle
Version as safety switchNo
Version as emergency stop installationNo
Version as maintenance-/service switchYes
InterlockableYes
Colour control elementBlack
Suitable for intermediate mountingNo
Rated short-time withstand current lcw55kA
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V-kW
Motor drive optionalNo
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
