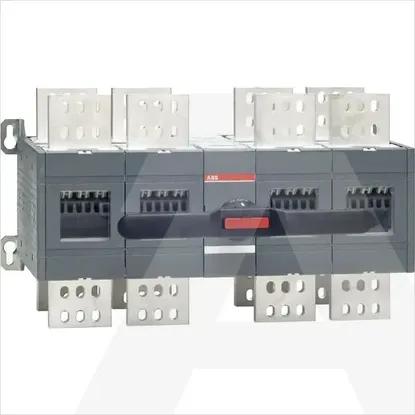

1SCA103953R1001 | OT2000E22CP
Code: 1981991
ManufacturerABB
Catalog number1SCA103953R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019383101
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact0
Height377mm
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Depth335mm
Width664mm
Number of switches1
InterlockableYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Version as emergency stop installationNo
Type of control elementLong turning handle
Rated short-time withstand current lcw55kA
Version as main switchYes
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Colour control elementBlack
Suitable for intermediate mountingNo
Version as safety switchNo
Suitable for front mounting centreNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
