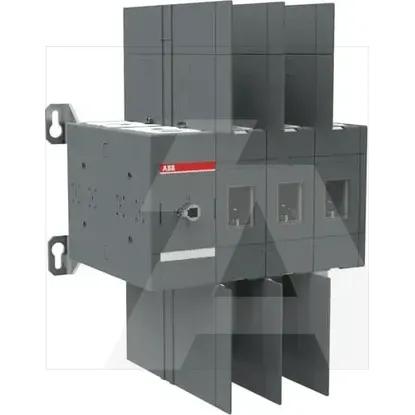

1SCA104030R1001 | OT800U03C
Code: 1981992
ManufacturerABB
Catalog number1SCA104030R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019383736
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitScrew connection
Height376mm
Motor drive integratedNo
Width in number of modular spacings-
Number of switches1
InterlockableYes
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
Depth335mm
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Width400mm
Number of auxiliary contacts as normally closed contact0
Version as reversing switchNo
Suitable for floor mountingNo
Version as emergency stop installationNo
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)1
Version as main switchYes
Type of control elementOther
Rated permanent current at AC-21, 400 V1600A
Rated short-time withstand current lcw50kA
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V1600A
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
