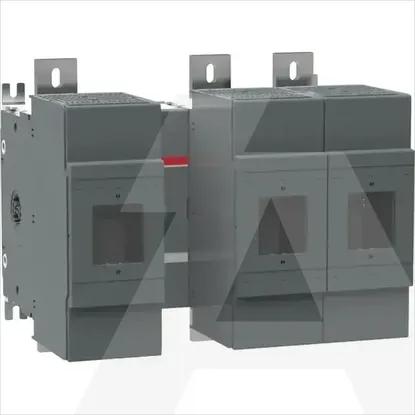

1SCA104688R1001 | OS1250DA12
Code: 1981999
ManufacturerABB
Catalog number1SCA104688R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019394220
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Rated short-time withstand current lcw40kA
Rated operation power at AC-23, 400 V1000kW
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Version as emergency stop installationNo
Version as safety switchYes
Motor drive integratedNo
Type of control elementShort thumb-grip
Suitable for front mountingNo
Suitable for floor mountingNo
With error protectionNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Position control elementFront side
Motor drive optionalNo
Rated permanent current Iu1000A
Number of poles3
Suitable for fusesNH4a
Max. rated operation voltage Ue AC1000V
